Successful coupling of the X-IFU Warm Front-End Electronics demonstrator at SRON

A major milestone has been reached beginning of October 2025 in the development of the Warm Front-End Electronics (WFEE) for the ATHENA X-IFU detection chain with the successful coupling of WFEE demonstrator model 2 (DM2) during the Focal Plane Assembly (FPA) DM1.1 test campaign at SRON (Space Research Organisation Netherlands).

The WFEE, developed by APC (AstroParticule and Cosmology) in Paris, is a key element of the X-IFU readout chain. Located at room temperature, it interfaces the cryogenic detector system with the digital electronics. Its primary functions include the low-noise amplification and conditioning of the signals coming from the SQUID-based cold readout, the provision of stable and accurate biasing current to the detectors and cold electronics, and the transmission of science and housekeeping data. The WFEE is based on a dedicated family of application specific integrated circuits (ASIC), AwaXe, specifically designed for X-IFU to meet its stringent requirements. Achieving the required performance is essential to preserve the exceptional energy resolution of the X-IFU TES microcalorimeter array.

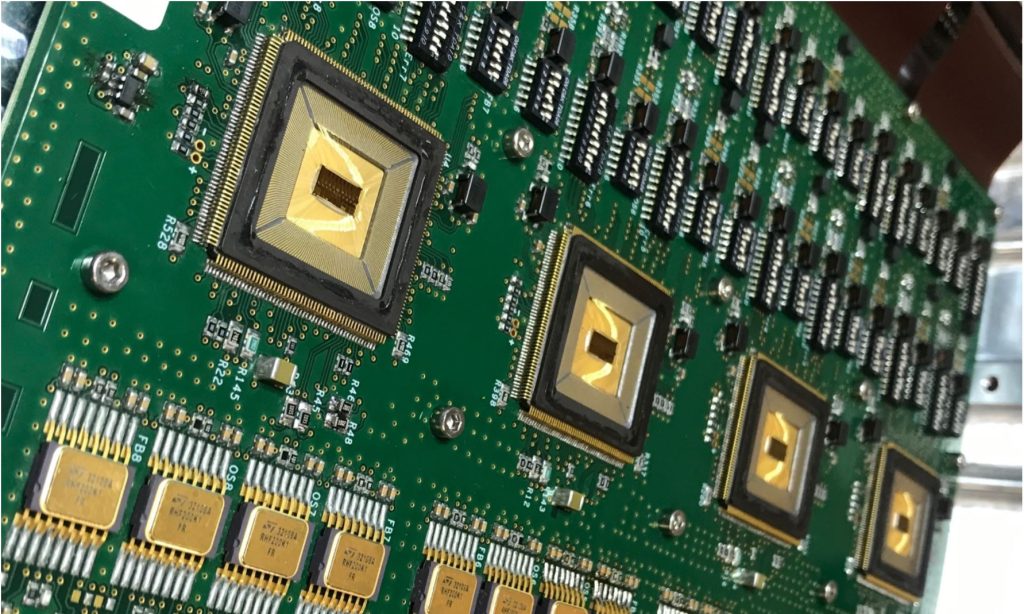

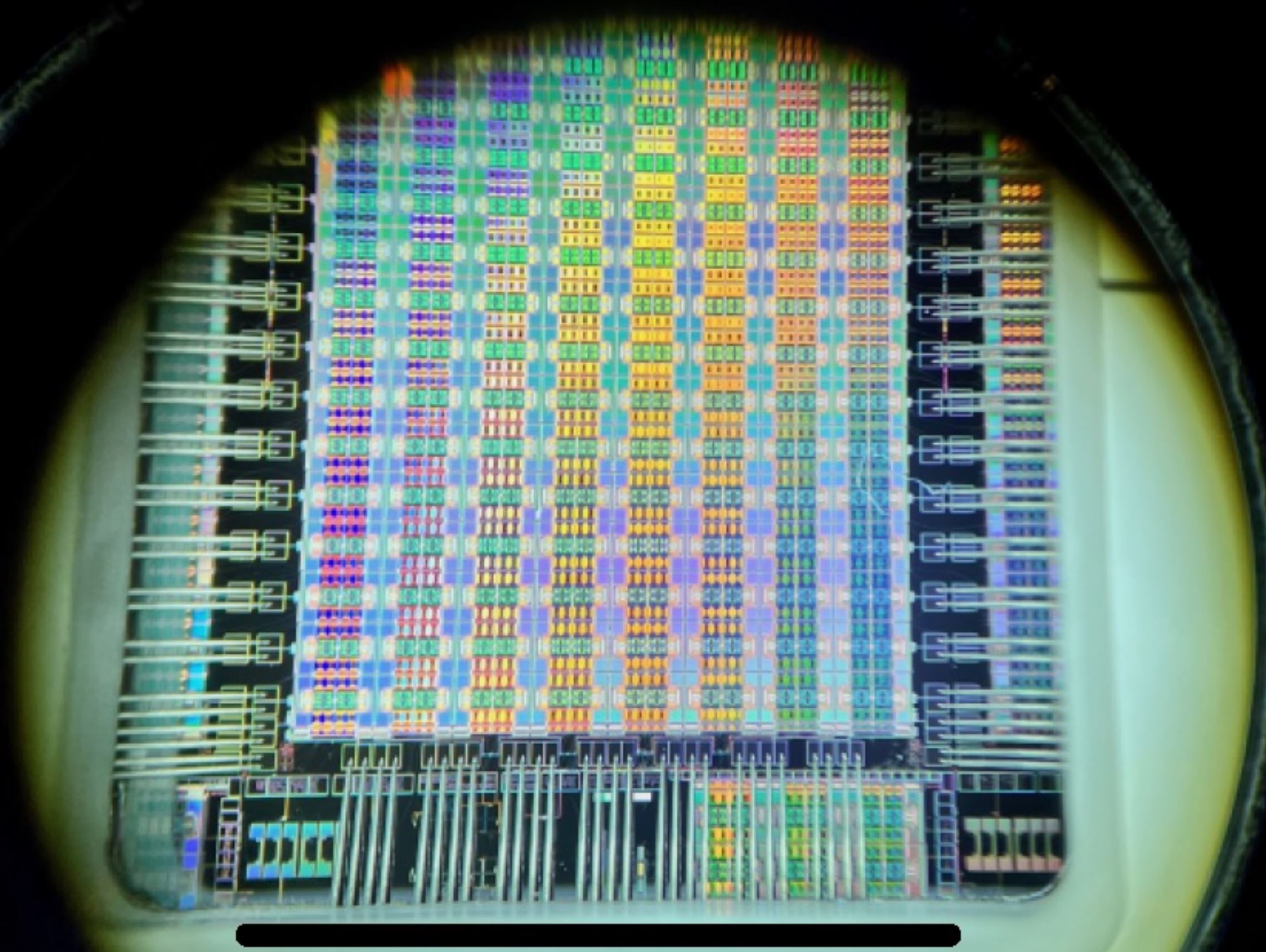

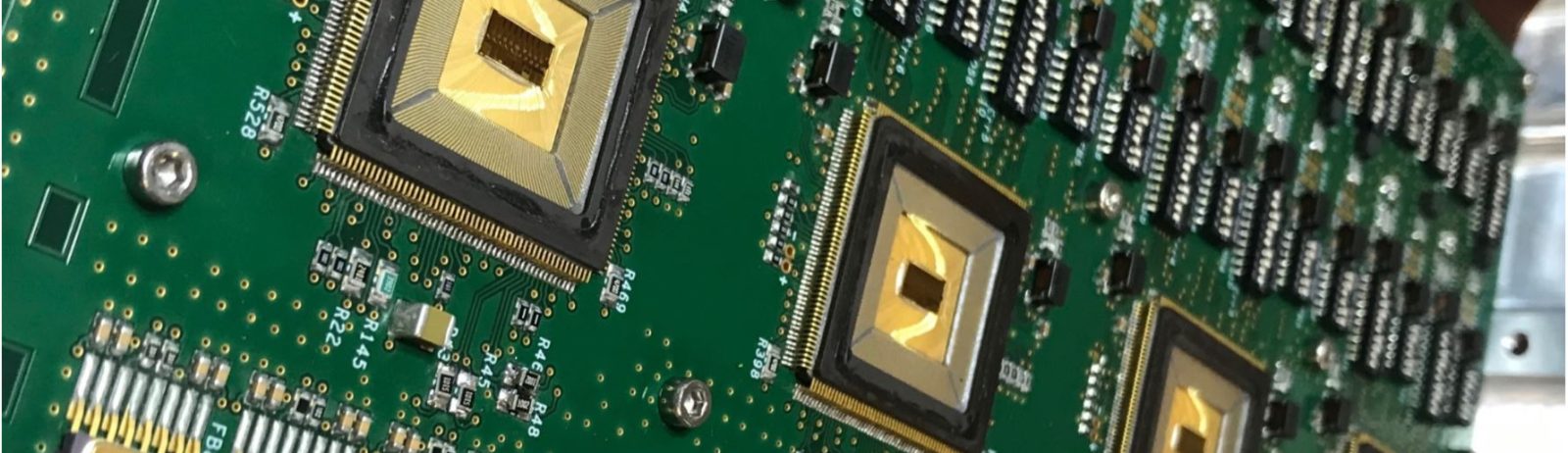

Four of the AwaXe_v3 integrated circuits used in the WFEE DM2 to bias TES detectors and SQUID cryo-electronics and finally amplify the detected signals

During the focal plane assembly (FPA) DM1.1 campaign, the WFEE DM2 was successfully coupled to a representative X-IFU readout chain. This included TES detector arrays developed at NASA Goddard Space Flight Center, cold readout electronics from NIST (National Institute of Standards and Technology) and VTT (Valtion teknillinen tutkimuskeskus), SRON’s FPA and NASA’s digital electronics. The first successful coupling took place in October and resulted in a representative demonstration of the X-IFU detection chain.

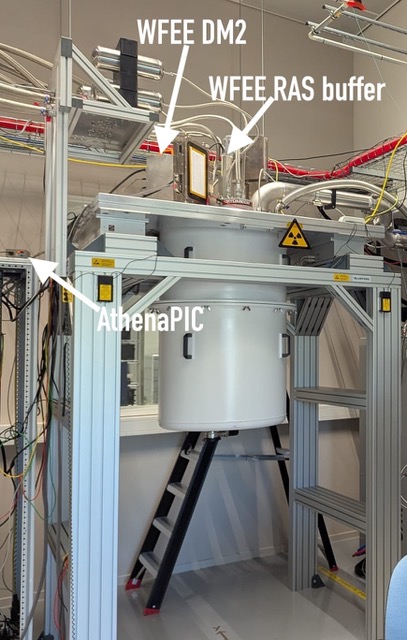

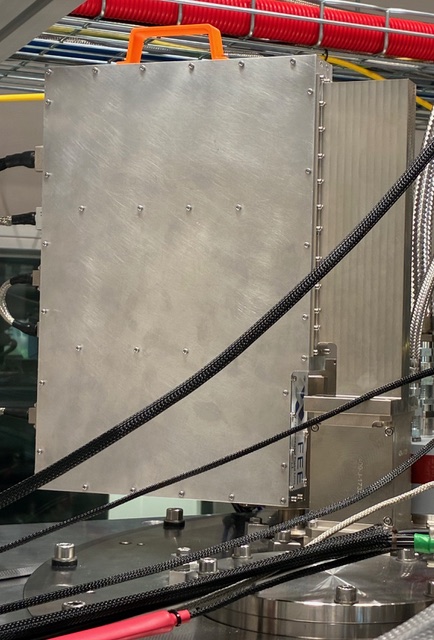

(left) WFEE DM2 installed on top of the FPA DM1.1 test cryostat …
… (right) at SRON, in addition to an extra
WFEE buffer board for TDM row addressing and the APC “AthenaPIC”, a controller used to communicate the ASICs

The tests demonstrated the correct operation of the main WFEE functionalities, as well as the achievement of the basic performance levels required at this stage of the project. This successful integration validates the overall design choices of the WFEE and confirms its compatibility with the detector and readout subsystems developed by international partners : CNES, SRON, NASA, NIST, VTT.

This result represents an important step forward for the development of the X-IFU instrument. It provides strong confidence in the maturity of the WFEE design and ensures the continuity of the ongoing developments toward the upcoming engineering and flight models, in close collaboration with the whole European and international X-IFU consortium.

Glossary

  • SQUID : Superconducting Quantum Interference Device
  • TES : Transition Edge Sensor
  • FPA : Focal Plane Assembly

Teams involved

  • The WFEE was developed by the WFEE team at APC (AstroParticule and Cosmology).
  • On the day of the coupling, personnel from SRON, NASA, CNES, and APC were present.

Plus d'actualités

Technical status of X-IFU prior to mission adoption

The SPIE meeting 2026 was the opportunity to present X-IFU as it stands today, as we move towards the start of the mission adoption process, to be concluded in June 2027. The overview presentation given by Philippe Peille (CNES, Instrument manager) showed the status of X-IFU, and presented all the demonstration activities that are on-going. […]

Understanding TES Performance in Modified Bias Circuits for X-IFU Multiplexed Readout

A recent paper by Smith et al., « Transition-edge sensor characteristics in a modified bias circuit for multiplexed readout, »has been accepted for publication in the IEEE Transactions on Applied Superconductivity. The work addresses an important aspect of X-IFU detector readout: the impact of incorporating a bypass resistor into the bias circuit used for time-division multiplexing (TDM). […]

The first test of the Cryogenic AntiCoincidence detector (CryoAC) inside the X-IFU Demonstration Model 1.1 has been successfully completed

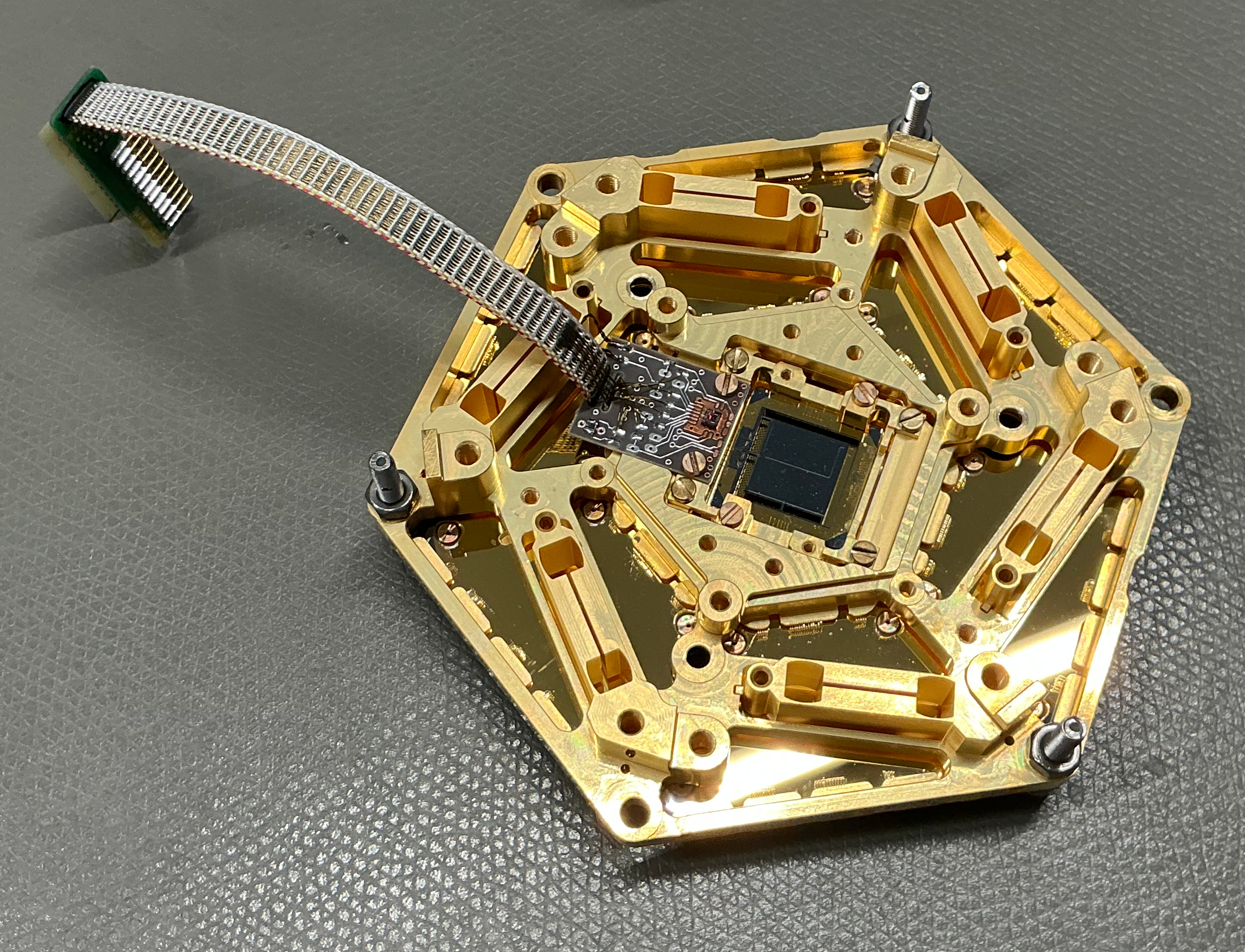

Image above : The CryoAC demonstration prototype integrated in the detectors flange of the Focal Plane Assembly Demonstration Model 1.1. Image credit: SRON. The X-ray Integral Field Unit (X-IFU) is the cryogenic instrument onboard NewAthena mission. In the late 30s, it will transform our understanding of the hottest components and the most energetic phenomena in […]
